Quick Specs
Boasts 24 cores (8 P-cores, 16 E-cores) for exceptional multi-tasking and performance.
Reaches up to 5.6 GHz with Intel Thermal Velocity Boost for peak responsiveness.
Features 36 MB Intel Smart Cache and 40 MB L2 Cache for rapid data access.
Supports up to DDR5 6400 MT/s memory for lightning-fast memory bandwidth.
Integrated Intel Graphics with Xe-cores delivers stunning visuals and supports up to 4 displays.

Experience a New Era of Processing Power with Intel Core Ultra 9
Unleash Your Creative Potential with Intel Core Ultra 9
Dominate Gaming with Uncompromising Power
The Intelligent Future is Here
Built for the Next Generation of Computing

FEATURES:
Blazing-fast performance with a max turbo frequency of 5.6 GHz.
Accelerate AI tasks with the integrated Intel AI Boost NPU.
Seamless multitasking with 24 cores (8 P-cores, 16 E-cores).
Create and game with stunning visuals thanks to Intel Graphics with Xe-cores.
Maximise memory bandwidth with support for up to DDR5 6400 MT/s memory.
Connect to the latest devices with Intel Thunderbolt 4 support.
Manage and secure your system with Intel vPro Enterprise features.
Benefit from enhanced security with Intel Threat Detection Technology (TDT).

SPECIFICATIONS:
Essentials:
Product Collection: Intel® Core™ Ultra Processors (Series 2)
Code Name: Products formerly Arrow Lake
Vertical Segment: Desktop
Processor Number: 285
Overall Peak TOPS (Int8): 36
CPU Specifications:
Total Cores: 24
# of Performance-cores: 8
# of Efficient-cores: 16
# of Low Power Efficient-cores: 0
Total Threads: 24
Max Turbo Frequency: 5.6 GHz
Intel® Thermal Velocity Boost Frequency: 5.6 GHz
Intel® Turbo Boost Max Technology 3.0 Frequency: 5.5 GHz
Performance-core Max Turbo Frequency: 5.4 GHz
Efficient-core Max Turbo Frequency: 4.6 GHz
Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.9 GHz
Cache: 36 MB Intel® Smart Cache
Total L2 Cache: 40 MB
Processor Base Power: 65 W
Maximum Turbo Power: 182 W
Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
CPU Lithography: TSMC N3B
Memory Specifications:
Max Memory Size (dependent on memory type): 256 GB
Memory Types: Up to DDR5 6400 MT/s
Max # of Memory Channels: 2
ECC Memory Supported: Yes
Expansion Options:
Direct Media Interface (DMI) Revision: 4.0
Max # of DMI Lanes: 8
Intel® Thunderbolt™ 4: Yes
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1×16+2×4, 2×8+2×4, 1×8+4×4
Max # of PCI Express Lanes: 24
GPU Specifications:
Processor Graphics: Intel® Graphics
Graphics Base Frequency: 300 MHz
Graphics Max Dynamic Frequency: 2.0GHz
GPU Peak TOPS (Int8): 8
Graphics Output: eDP1.4b, DP 2.1 UHBR20, HDMI 2.1 FRL
Xe-cores: 4
Max Resolution (HDMI): 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) | 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
Max Resolution (DP): 7680 x 4320 @ 60Hz
Max Resolution (eDP – Integrated Flat Panel): 3840 x 2400 @ 120Hz
DirectX Support: 12
OpenGL Support: 4.5
OpenCL Support: 3
H.264 Hardware Encode/Decode: Yes
H.265 (HEVC) Hardware Encode/Decode: Yes
AV1 Encode/Decode: Yes
VP9 Bitstream & Decoding: Yes
Intel® Quick Sync Video: Yes
# of Displays Supported: 4
Device ID: 0x7D67
Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
AI Software Frameworks Supported by GPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebGPU
NPU Specifications:
NPU Name: Intel® AI Boost
NPU Peak TOPS (Int8): 13
Sparsity Support: Yes
Windows Studio Effects Support: Yes
AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
Advanced Features:
Intel® Gaussian & Neural Accelerator: 3.5
Intel® Thread Director: Yes
Intel® Speed Shift Technology: Yes
Intel® Turbo Boost Max Technology 3.0: Yes
Intel® Turbo Boost Technology: 2.0
Intel® Hyper-Threading Technology: No
Intel® 64: Yes
Instruction Set: 64-bit
Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States: Yes
Enhanced Intel SpeedStep® Technology: Yes
Thermal Monitoring Technologies: Yes
Intel® Volume Management Device (VMD): Yes
Security & Reliability
Intel vPro® Eligibility: Intel vPro® Enterprise
Intel® Threat Detection Technology (TDT): Yes
Intel® Active Management Technology (AMT): Yes
Intel® Standard Manageability (ISM): Yes
Intel® Remote Platform Erase (RPE): Yes
Intel® One-Click Recovery: Yes
Intel® Secure Key: Yes
Intel® Control-Flow Enforcement Technology: Yes
Intel® Total Memory Encryption – Multi Key: Yes
Intel® AES New Instructions: Yes
Intel® Trusted Execution Technology: Yes
Execute Disable Bit: Yes
Intel® OS Guard: Yes
Intel® Boot Guard: Yes
Mode-based Execute Control (MBEC): Yes
Intel® Stable IT Platform Program (SIPP): Yes
Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
Intel® Virtualization Technology (VT-x): Yes
Intel® Virtualization Technology for Directed I/O (VT-d): Yes
Intel® VT-x with Extended Page Tables (EPT): Yes

WHAT’S IN THE BOX:

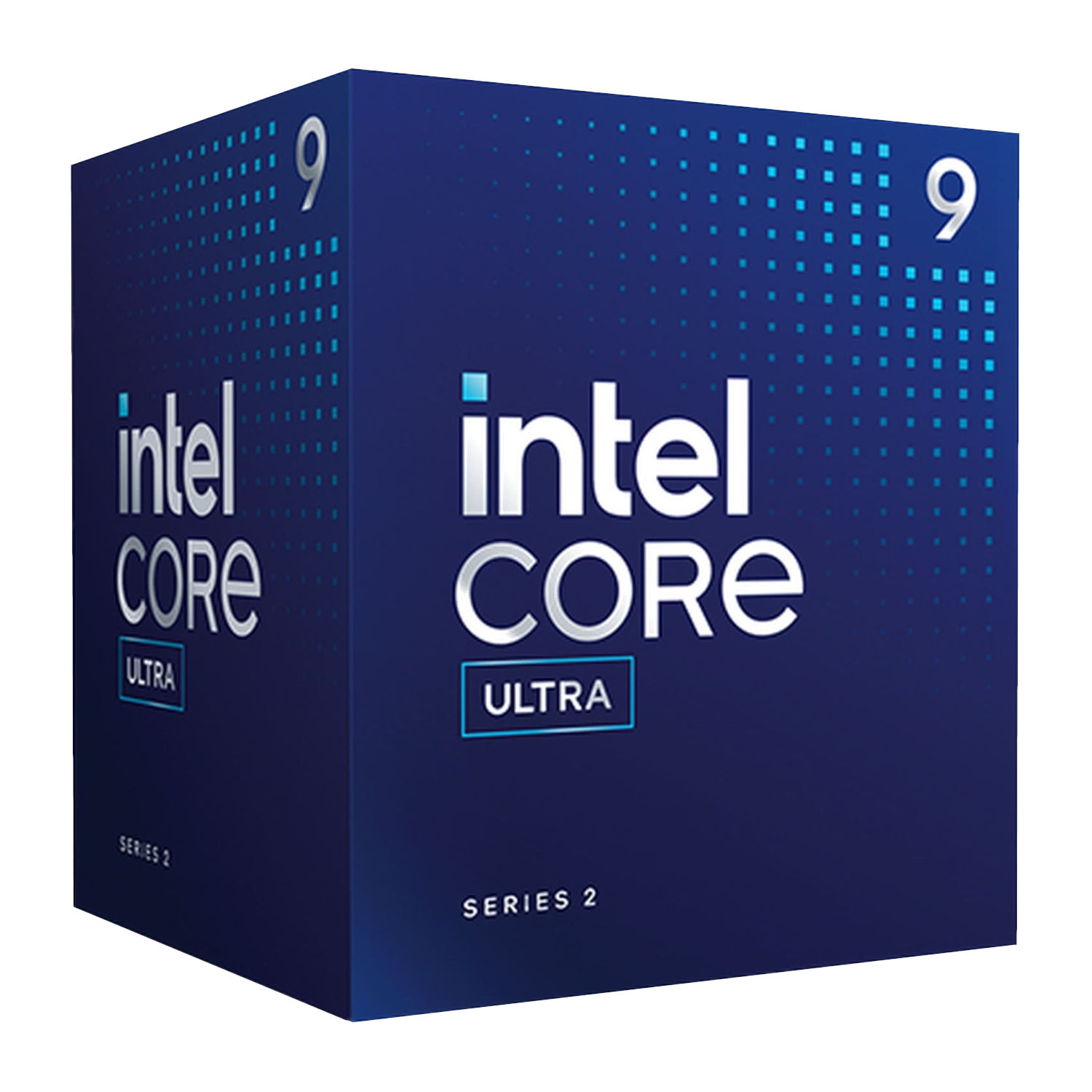

Intel® Core™ Ultra 9 285 LGA1851 2.50GHz 24-Core CPU x1

Why Intel?
For decades, Intel has been a cornerstone of innovation in the computing world. Choosing an Intel Core Ultra 9 processor means investing in reliability, cutting-edge technology, and a legacy of performance. From powering everyday tasks to driving the most demanding applications, Intel CPUs continue to set the standard for excellence. Trust in Intel to deliver the power and performance you need to succeed in today’s fast-paced digital world with the Intel Core Ultra 9.
